Integra DTR 70.6

3 000,00

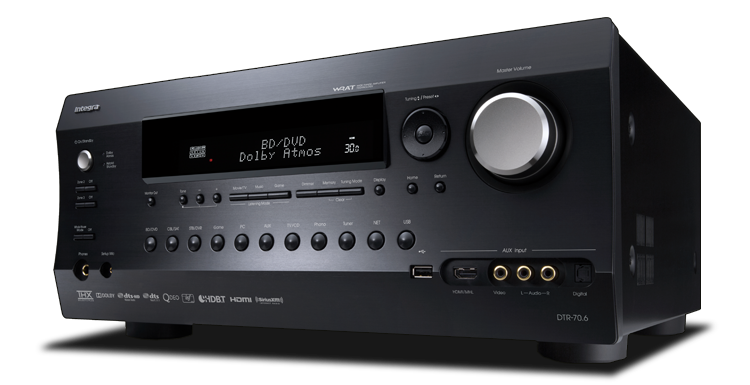

Integra DTR 70.6

The 11.2 channel DTR-70.6 A/V Receiver offers major flexibility. Build a 7.2.4 Dolby Atmos theater (7.2 plus 4 Dolby Atmos height channels) or a 5.2.4 Dolby Atmos theater (5.2 plus 4 Dolby Atmos height channels) with independent powered audio & video for zone 2 and an independent line level-audio for zone 3, or a 7.2 standard theater with independent audio & video for zone 2 and an independent powered audio for zone 3. Keeping up with the options? There are also 11.4 preamp outs for use with separate power amps.

COLAB Integra DTR 70.6

Feel Every Dimension in Dolby AtmosTM
Dolby Atmos® transforms your room into an amazing space. Sound comes alive from all directions, including overhead, fully captivating the listener with astonishing clarity, power, richness and depth. People, music, and objects come alive in breathtaking detail and flow in precise choreography all around you- making you feel like you are inside the action.

The dual 32-bit DSP engines and 11 channels of reference level high-current amplification combine to unlock the full Dolby Atmos experience with up to 4 in-ceiling height channels or Dolby Atmos-enabled speakers to augment a standard 7 channel surround sound setup- for stunningly detailed sound that comes alive from all directions, including overhead. Additionally, a new Dolby surround upmixer allows for legacy channel-based content that has not been mixed for Dolby Atmos to be expanded to fill the flexible speaker layouts of a Dolby Atmos system.

HDMI 2.0 for 4K Video at 60 fps, and HDCP 2.2 Compatibility
The DTR-70.6 is ready for the next generation of digital entertainment. Featuring support for both HDCP 2.2 DRM copy protection-necessary for most Ultra HD content- and HDMI 2.0 for 4K 60 Hz and theatrical 21:9 video aspect ratio. The DTR-70.6 also effortlessly converts standard definition video signals from legacy devices to 1080p Full HD or stunning 4K Ultra HD. Eight HDMI inputs and three HDMI outputs offer flexible setup options- such as sending HDMI signals to a multiple display devices in the main zone or HD video and audio to a second room.

Hi-Resolution Audio Powerhouse
Hear your music library as never before. High-Resolution means studio quality sound recording to extract additional elements, nuances and details far beyond the capabilities of standard CD to virtually put you in the room with your favorite musician. Integra makes it incredibly easy to access and enjoy audio files mastered in high-resolution (up to 192kHz/24-bit) stored on a computer, media server, network-attached storage (NAS) or USB thumb drive with zero loss in audio quality. Virtually every hi-resolution and lossless format is supported- 2.8 or 5.6 MHz DSD, Dolby® TrueHD as well as gapless playback of FLAC, WAV, ALAC and WMA files. Dual 32-bit DSP Engines and premium quality Texas Instruments digital to analog converters ensure effortless high-quality playback and excellent sound quality.

THX® Select2 Plus for Reference-Level Sound
THX certification provides home consumers with an experience “as the director intended†in the cinema.  THX spends 40-60 hours testing over 2000 data points ensuring that the DTR-70.6 is capable of meeting rigorous audio and video performance standards for reference level, distortion free playback and includes THX Loudness Plus technology to bring out intricate details at lower listening levels.

COLAB Integra DTR 70.6

ISF Video Calibration for Optimal Video Performance
Utilizing industry-leading ISF (Imaging Science Foundation) video calibration allows you to dramatically improve your home theater by enabling sharper-focused, fuller resolution images and a more accurate color balance. ISF Calibration turns your A/V controller into a true video hub; this function ensures that every video source is independently calibrated for your connected high-definition display. ISF video calibration has also been shown to improve energy savings in displays and projectors by up to 50 percent.

HDbaseT for Long Runs
HDBaseT is a newer standardized method to transmit 4K UltraHD and digital audio much farther than is recommended over HDMI alone. HDBaseT allows signals to be transmitted up to 328 feet utilizing cat5e/cat6 cable to any certified third party HDBaseT receiver or device that has its own power supply. This makes long distance runs to projectors or a second zone easy and reliable.

Hand Selected Audio Tuned Parts
Sound quality is the key factor in Integra's design process. Both the preamp and amplification stages of our components utilize hand-selected parts including but not limited to our high current, low impedance power supplies; over-sized storage capacitors, transistors and resistors. These parts are selected for their audiophile quality and acoustically transparent characteristics. This provides lower noise and more accurate frequency response; outstanding signal tracking and linearity; unsurpassed dynamic range; precise channel separation; sonic and visual playback accurate to the artist's intended vision; and enduring quality, even under the most challenging circumstances.

Zone 2 HDMI Output
The DTR-70.6 has 3 HDMI Outputs. The Main Zone / Main Out supports protected Ultra HD content, and Audio Return Channel (ARC) to get audio back from your compatible television. The Main Zone / Sub Out supports an additional display in the main zone.
A third HDMI Out is an independent Zone 2 HDMI Out that allows you to watch a different source in another area of your home, a truly versatile feature.
All three outputs are individually controllable so your control system can easily manage what you are watching and where.

COLAB Integra DTR 70.6

Network Streaming Services
The receiver comes loaded with Spotify, Pandora, SiriusXM Internet Radio, Slacker, AUPEO! and TuneIn. Select a station and search for music available on these services via the Integra remote control app on your smartphone.
Spotify Connect is available in this receiver. It allows Spotify Premium subscribers to stream over 20 million tracks from the Spotify smartphone and tablet application to their A/V component. Spotify Connect also allows users to make calls or use other apps without interrupting playback, since the technology is built into the receiver.

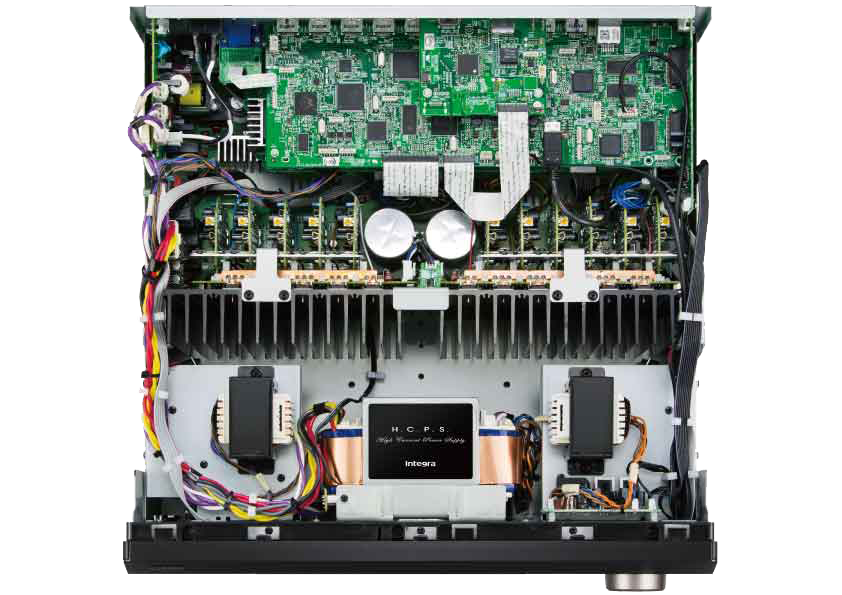

The Best Build and Flexibility
Three discrete high-current transformers, separate processing and amp blocks, and state-of-the-art 32-bit D/A conversion combine in the magnificent DTR-70.6 "heart of the world"TMs ultimate Dolby Atmos home theater. Along with the power, the 11.4 channel pre-outs provide the flexibility to customize a home theater setup to personal preference by enabling the connection of one or more outboard amplifiers. For example, a two-channel hi-fi power amp can be added to drive the front speakers, thereby reducing the overall load on the receiver and improving sonic headroom. Or signals can be outputted to a high-power five-channel amp to drive key speakers in an 11-channel setup. Four subwoofers can also be connected for maximum bass impact in larger rooms.

App Control
The Integra remote app for iPod touch®/iPhone,® Android, and Kindle devices is a convenient way to control your home entertainment from anywhere within wireless range. The app has a clear graphical interface to control playback, adjust settings and handle content across multiple zones.
The app serves hi-res, lossless, and compressed audio files (including 192 kHz/24-bit FLAC, DSD, and Dolby® TrueHD) to the Integra receiver from your mobile devices, and gives it stunning sound.

Perfect for Custom Installation
You can't say integration without Integra. Integra products are designed and engineered to meet the demands of custom audio/video systems installers. The DTR-70.6 includes system integration connectivity such as RS232 and IP control with support for 2-way communication with 3rd party home automation systems. A pair of infrared (IR) inputs and an IR output make for a clean, reliable installation and allow pass-through of IR signals to control other devices connected to the DTR-70.6, such as a TV or Blu-ray player. Three fully programmable 12 volt triggers can be used to raise/lower a projection screen, power on/off an external amplifier and open/close the drapes all with the touch of a button! An optional rack mount kit provides a clean, finished look. Integra works closely with control systems partners such as Savant, Crestron, URC, and RTI, and supports Control4 Simple Device Discovery Protocol (SDDP) and AMX Device Discovery for simplified system integration. A complete list of Partners can be found here (provide link to Partners page). So when it's "Movie Time" everything operates seamlessly and intuitively. Now that's "Integra"tion!

COLAB Integra DTR 70.6

SPECIFICATIONS

AMPLIFIER:
# Channels 11.2
POWER (8 Ω 20-20kHZ 0.08%) / CH 135
Amplifier Frequency Response (WRAT) 5Hz - 100kHz
THX Certified ✓
Continuous 6 Ω Rated ✓
Low Impedance Drive- Certified 4 Ω Performance ✓
Hand Selected Parts to Ensure
Low Impedance Performance ✓ (Custom- Audio Tuned)
Discrete Output Stages for All Channels ✓
All Channels Equal Power Output ✓
PUSH-PULL Amplifier Design ✓
3-Stage Inverted Darlington Circuitry ✓ (All Channels)
Independent Block Construction (Amp/Preprocessor) ✓
Shielded Toroidal Transformer
Independent Power Supply 4
High Quality Extruded Aluminum Heatsink ✓
Bi-amp Capability For Front ✓
Amp Assignable to Passive Subwoofer ✓ (x 2)

PROCESSING:
Dolby Atmos ✓
Dolby TrueHD, Dolby Digital Plus Decoding ✓
DTS-HD Master Audio,
DTS-HD Express Decoding ✓
DTS Neo:X (Front High / Wide Channels) ✓
Dolby Pro Logic IIz (Front High Channels) ✓
THX Processing Modes & Loudness Plus ✓
Differential DAC Mode ✓
AccuEQ Automatic Room Calibration ✓
Phase-Matching Bass Boost ✓
GAME Surround Modes
(Rock, Action, Sports, Role Play) ✓
Advanced Music Optimizer to Enhance
Compressed Audio Files ✓
DSD Processing / Direct Mode ✓
192K / 24-Bit Audio DAC
192K / 32-Bit Audio DAC ✓ (x7)
32-Bit DSP Chip for Advanced Processing ✓ (Dual DSP's)
Ultra-Low-Jitter Circuitry to Improve Audio ✓
Adjustable Crossover by Channel Pair 40/45/50/55/60/70/80/90
100/110/120/130/150/200 Hz
Accurate Speaker Distance Setting 0.1-foot
A/V Sync Delay (by Source) ✓ (-100 to +500 ms)
ISF Certified Calibration Controls (ISFccc) ✓ (w/Day / Night Memory)
Picture Control Settings per Source ✓

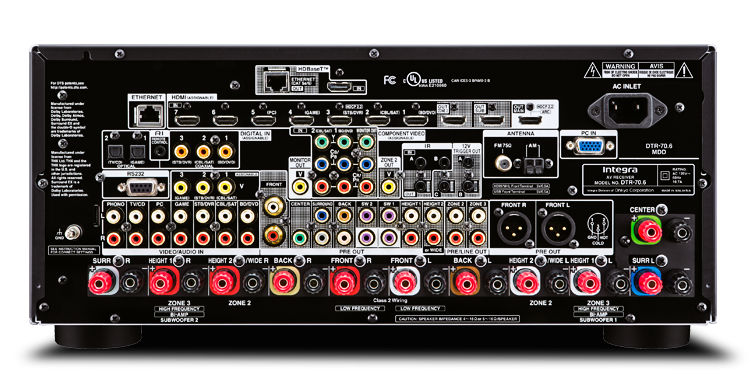

CONNECTIVITY:
HDMI 2.0 4K/60 Hz Capable ✓
HDCP 2.2 Copy-Protection Compatibility ✓
HDMI Support for 3D, Audio Return Channel and CEC ✓
HDMI Support for Deep Color, x.v.Color, LipSync ✓
HDMI Support for DVD-Audio, SACD, Multichannel PCM ✓
HDMI Inputs / Output(s) 8 / 3 + 1 HDBaseT
Front Panel HDMI Input ✓
HDBaseT Output ✓
MHL (Mobile High-Definition Link) ✓
InstaPrevue Technology (PIP for HDMI Sources) ✓
Analog to HDMI Upconversion From 480i/576i (Qdeo by Marvell)
1080p Upscaling Qdeo by Marvell
4K Upscaling Qdeo by Marvell
4K Passthrough ✓
D-Sub (15-pin) VGA Input ✓
Component Video Inputs / Output(s) 2 / 1
Composite to Component Video Upscaling
Composite Video Inputs / Output(s) 4 / 2 (Including Zone 2)
Digital Audio Inputs (OPT / COAX) 3 / 3
Analog Audio Inputs / Output(s) 7 / 0
Phono Input ✓
Front Panel A/V Input ✓
Multi-Channel Input
Analog Pre-outs 11.4
Balanced XLR Pre-Outs ✓ (Front L / R)
High Grade 18 mm-pitch RCA Pre-Outs ✓ (Front L / R)
iPod/iPhone/iPad Ready Via Optional DMI-40.4
Airplay Ready Via Optional DMI-40.4
HD Radio

NETWORK / USB:
Supports Integra Remote Apps for
iPod/iPhone and Android-Powered Devices ✓
DLNA v1.5 Certified ✓
"Home Media" Sharing ✓
Aupeo! ✓
Pandora ✓
SiriusXM Internet Radio ✓
Slacker ✓
Spotify ✓
TuneIn Radio ✓
DSD Support (2.8 MHz) ✓
Double DSD Support (5.6 MHz) ✓
Dolby TrueHD Support ✓
Apple Losless (ALAC) Support ✓
WAV Support ✓
WMA Lossless Support ✓
AAC Support ✓
Ogg Vorbis Support ✓
FLAC Support ✓
LPCM Support ✓
MP3 Support ✓
USB Input for Streaming Audio ✓
Wireless Network Ready
Bluetooth Ready
Firmware Updates via Network / USB X / X
Firmware Update Notification ✓

MULTIZONE:
Powered Zone 2/ Zone 3 / Zone 4 X / X / -
Fixed or Variable Zone 2 / Zone 3 / Zone 4 Line Out X / X / -
Zone 2 / Zone 3 Subwoofer Output
Zone 2 Video Output ✓ (HDMI or HDBaseT, Composite)
Zone 2 Audio DAC ✓ (HDMI, NET, USB)
Zone 3 Audio DAC ✓ (NET, USB)

INTEGRATION ACCESS:
Bi-directional RS-232 Control Port ✓
Bi-directional Ethernet Control Port ✓
Rear Panel IR Input / Output 2 / 1
RIHD (Remote Interactive over HDMI) ✓
RI System Control ✓
12V Trigger (w/adjustable delay) ✓ (x3, Assignable)

MISCELLANEOUS:
Pre-programmed / Learning Remote X / X
GUI for Remote Control Programming ✓
GUI for Setup Menu ✓
Home Menu / Quick Setup Menu X / X
Activity Remote
(MY MOVIE, MY TV, MY MUSIC, ALL OFF) ✓
Input Name Edit ✓ (Fully Customizable)
HDMI Standby "Through" Mode Assignable
Setup Store & Recall Function ✓
Screensaver Function ✓
Hybrid Standby to Reduce Power Consumption ✓
Smart Grid Ready ✓
Solid Aluminum Front Panel ✓
Aluminum Volume Knob Sand Finished
Detachable AC Cord ✓
Rack Mount Kit Available IRK-180-4B
Warranty 3 YEARS
