OYAIDE Across750 RR

175,00€

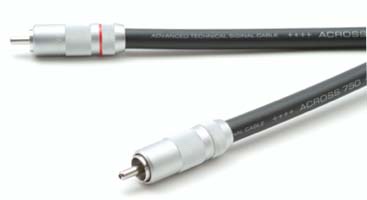

Oyaide Across750





Oyaide Across750RR 0,7m : 175,00€

Oyaide Across750RR 1m : 199,00€

Oyaide Across750RR 1,3m : 225,00€







Diapason d’Or 2008



Unlimited potential, ACROSS 750.

The Across 750 cable emerged as a result of growing customer demand for an interconnect cable that would match the performance of our ACROSS 2000 speaker cable. We have employed the same basic concepts used in our ACROSS 2000 speaker cable - C.I.S. construction, halogen free sheath and PCOCC-A conductors. Modifying the overall design to yield a new type of interconnect cable, the Across 750, a cable that can take you new, unexplored heights of performance.

In contrast to its elegant caviar black exterior color, ACROSS 750 is constructed by several innovative ideas and novel design concepts.
Its basic architecture is C.I.S structure which was produced to diffuse vibrations into the air chamber rather than being re-absorbed into the cable structure. This newly-developed structure enhances not only vibration damping property but electrical characteristic.
The Multi-stranded wire structure, originally developed for ACROSS series, is applied for maximum density and uniformity of wire structure and for infilling of internal space and preventing deformation among the wires.
Moreover, spiral shielding is employed for infilling of internal space as well as the conductor and its halogen-free sheath was specifically developed for audio use.



The astonishingly creative and leading-edge technology honed by decade of experience in developing cables is seemingly married with the sophisticated structure and the latest materials.



Specification ACROSS 750

Conductor : PCOCC-A

AWG : 0.75Sq（30/0.18）

Cable Structure : C.I.S（Cross insulated stabilizer）

Insulation : Polymer Polyolefin

Insulation Tube : Polyethylene

Outer jacket : Halogen Free Polyethylene

Cable O.D. : 8.0mm

Conductor resistance : 8.4　Ω/km（at20℃)

Electric capacitance : 68.0 PF/m

Characteristic impedance : 70Ω
