McIntosh MT10

15 799,00€

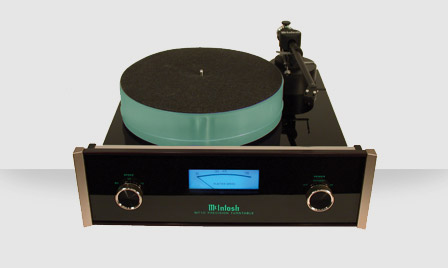

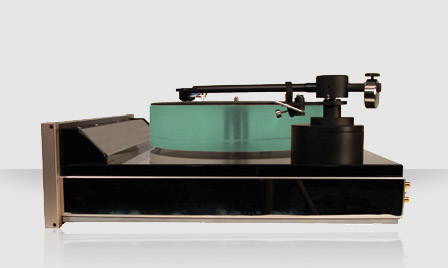

The McIntosh MT10 Turntable marries classic McIntosh glass front panel cosmetics with serious mechanics to create a unique, ready-to-play LP solution. With tracking force, anti-skate and cartridge position preset at the factory, the McIntosh MT10 delivers high performance LP playback with minimal set up.

A custom tonearm features a rigid, dural-aluminum arm-tube gimbaled in two sapphire (horizontal) and two ceramic (vertical) bearings for the least possible friction. A .5mV moving coil cartridge is included, and features an ebony body with an ellipitcal stylus.



MT10 Turntable Features



Ready To Play

Tracking force, anti-skate and cartridge position are all preset. The MT-10 is ready to use just moments after unpacking.



Matched Tone Arm and Cartridge

The MT10 tone arm features a specially dampened Dural-Aluminium armtube. The light weight and rigidity of the tone arm is an ideal mate for the custom, medium-weight moving coil cartridge.



Massive Platter

The platter is CNC machined from a special silicone acrylic material to a weight of twelve pounds and a thickness of two and one-half inches for near immunity to bass-robbing resonances.



Magnetic Air Damped Bearing

The MT10 Turntable Platter rotates on a special magnetic bearing; literally suspended on a cushion of air for near friction-free performance.



  • Precision Motor and Drive Electronics
  • Illuminated Speed Meter
  • Multi-Layered Damped Chassis Power Control
  • Fiber-Optic Illuminated Glass Front Panel
  • Super Mirror Chassis Finish





MT10 Turntable Specifications

MCC10 Cartridge Specifications

Output Level 0.5 mV at 5 cm/s



Load Impedance Greater than 200 ohms, 500 ohms recommended



Frequency Response 20Hz to 50,000Hz



Compliance 6 x 10-6 cm/dyne



Recommended Tracking Force 2.4 g



Channel Difference Less than 0.3 dB



Total Mass 11 g



Stylus Elliptical Diamond



Cantilever Material Aluminum



Body Ebony wood tone



MT10 Tonearm Specifications

Bearing Sapphire and Ceramic



Arm Tube Dural-Aluminum



Counterweight Eccentric



Adjustments VTA, Antiskate, Azimuth



MT10 Turntable Specifications

Playback Speeds 33-1/3 rpm, 45 rpm and 78rpm



Motor Type DC Brushless



Speed Control Electronic w/ braking feature



Platter Silicon Acrylic



Platter Bearing Magnetic



MT10 External Power Supply

Specifications

Output Voltage 24 Volts, 625ma



General Specifications

MT10 Turntable Specifications

Overall Dimensions

Width is 17-1/2 inches (44.45cm)

Height is 8-13/16 inches (22.38cm)

Depth is 21 inches (53.34cm)

Note: Tone Arm Height will vary depending on type of Cartridge installed.



WEIGHT
31kg net
