McIntosh MC1.2KW

17 999,00€/Bloc



The most powerful single chassis McIntosh amplifier, the MC1.2KW produces a massive 1,200 watts. The MC1.2KW features the extraordinary McIntosh Quad Balanced Circuit. Each amplifier consists of two balanced amplifier circuits, the outputs of which are combined in the unique, hand-crafted McIntosh Output Autoformer.  The result?  Totally balanced operation from input to speaker output that cancels virtually all distortion.



The MC1.2KW can be used with all loudspeaker types and features output connections that are optimized for 2, 4, and 8-Ohms for low distortion performance and maximum power transfer.  With features such as DC failure protection and remote power control, the MC1.2KW is an ideal marriage of power and performance.

MC1.2KW Power Amplifier Features

 EXCLUSIVE MCINTOSH POWER ASSURANCE SYSTEM

A collection of technologies that enhance performance and reliability while protecting the amplifier and loudspeakers.

POWER GUARD®

A waveform comparison circuit continuously monitors both input and output signals. Power Guard dynamically adjusts the input level to avoid clipping while preventing harsh sounding distortion.

SENTRY MONITORTM

Fuse-less short-circuit protection circuit disengages the output stage before current exceeds safe operating level – resets automatically.

OUTPUT AUTOFORMERTM

Unique McIntosh technology delivers the full rated amplifier output with the least possible distortion into loudspeaker impedances of 2, 4, or 8-Ohms; you get all the power you paid for and the freedom to choose any loudspeaker.

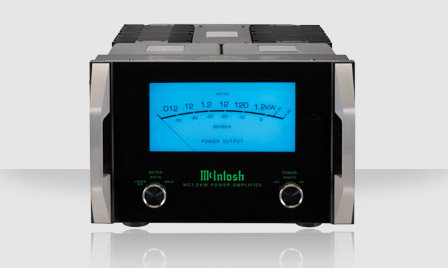

WATTMETER

Swift, accurate response reveals program peaks so staying within the power limits of your loudspeakers is easy.

  • Quad Balanced Design
  • Exclusive McIntosh Power
  • Assurance System
  • High Output Current Capability
  • Wide Bandwidth
  • Fiber-Optic Illuminated 3D Glass
  • Front Panel



POWER OUTPUT

1200 watts into an 8, 4 or 2 ohm load is the minimum sine wave continuous average power output.

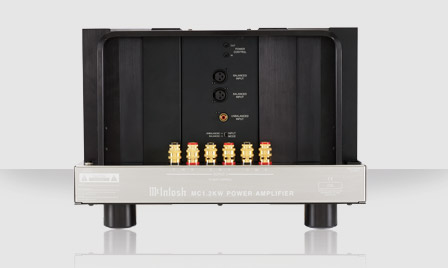

OUTPUT LOAD IMPEDANCE

Terminals for 8, 4 and 2 ohms



RATED POWER BAND

20Hz to 20kHz



TOTAL HARMONIC DISTORTION

0.005% maximum harmonic distortion at any level from 250 milliwatts to rated power output.



DYNAMIC HEADROOM

2dB



FREQUENCY RESPONSE

+0, -0.25dB from 20Hz to 20kHz

+0, -3.0dB from 10Hz to 100kHz



INPUT SENSITIVITY

2.5V Unbalanced, 5V Balanced



A-WEIGHTED SIGNAL-TO-NOISE RATIO

120 below rated output, Unbalanced

124dB below rated output, Balanced



INTERMODULATION DISTORTION

0.005% maximum if instantaneous peak power output does not exceed twice the rated output, for any combination of frequencies from 20Hz to 20kHz



WIDE BAND DAMPING FACTOR

Greater than 40



INPUT IMPEDANCE

10,000 ohms



POWER GUARD

Less than 2% THD with 14dB overdrive



POWER REQUIREMENT

100 volts, 50/60Hz, 13 amps

110 volts, 50/60Hz, 12 amps

120 volts, 50/60Hz, 12 amps

220 volts, 50/60Hz, 7.5 amps

230 volts, 50/60Hz, 6.5 amps

240 volts, 50/60Hz, 6.5 amps

Standby: 0.5 watts



Overall Dimensions (H x W x D) Including feet and cables

2-5/16 inches (31.27cm) x 17-3/4 inches (45.09cm) x 22 inches (55.88cm)



Weight

66.7 kg net

78.0 kg in shipping carton
